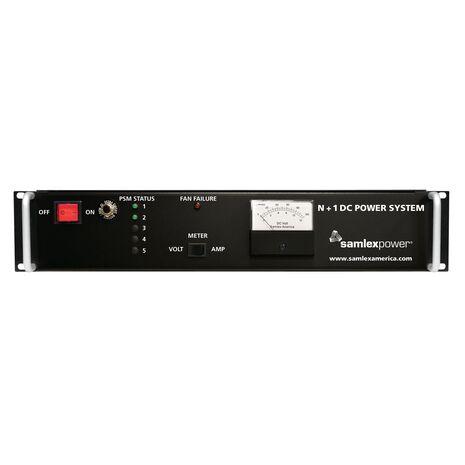

This modular 19” rack mount AC/DC power supply can provide up-to 40 Amps continuous power. The output DC voltage is highly regulated at 13.8 Volts (105-125 Volts, 50 Hz AC input). Output power can be expanded in steps of 20 amps (up-to 100 Amps max.). An external battery can be connected for back-up and a section of the output current (up-to 8 amps) is diverted to charge the batteries when in state of discharge using the in-built battery back-up module. The battery supplies the DC load on loss of utility power. Features include N+1 redundancy, front panel analog Volt/Ampere Meter display, remote monitoring and indication by 25-pin D-sub connector, fan failure warning and alarm indication. Ideal for critical power supply applications, telecommunication systems, mobile sound/audio displays, GPS receivers, security systems, CCTV systems.
SEC-40BRM has replaced the following products:SEC-60BRM, SEC-80BRM and SEC-100BRM. In order to get a 60BRM unit, you must order the SEC-40BRM with the SEC-2012MPSB 20A supply module.
Although the SEC-40BRMs are provided with a 20A, NEMA 5-20P plug, these may be powered from a 15A branch circuit if 20A branch circuit is not available. For this situation, a separate 15A NEMA 5-15P plug has been provided to replace the 20A NEMA 5-20P plug provided with the power cord.
